DT-1500 Packet Pouch Dispenser

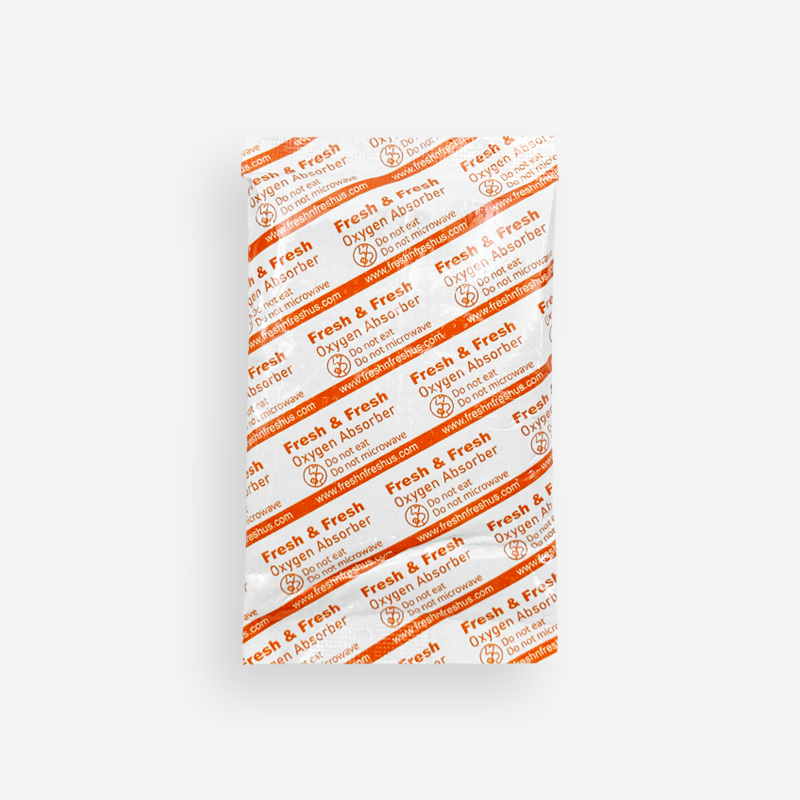

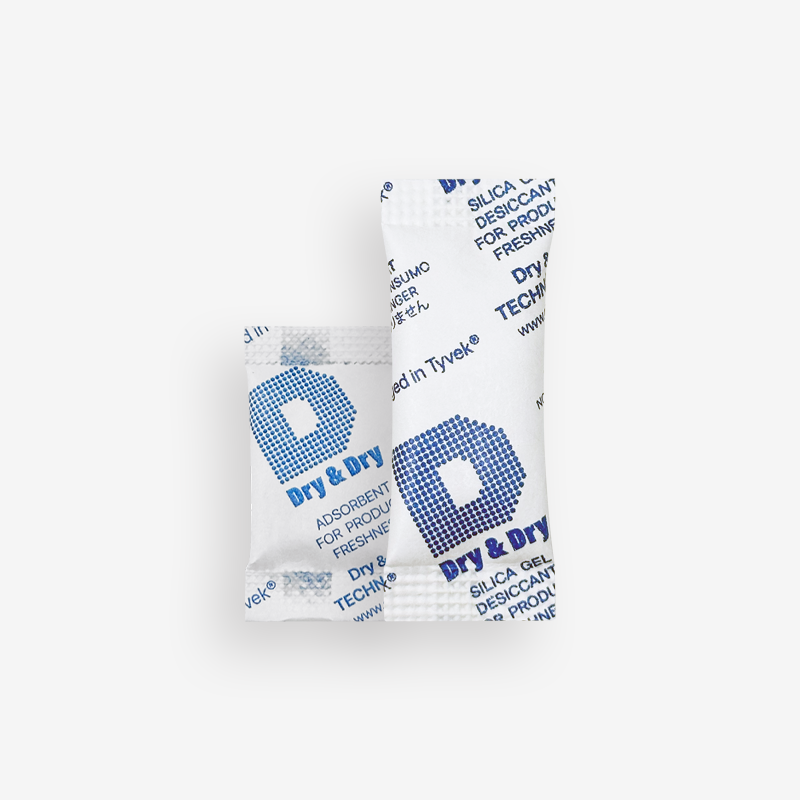

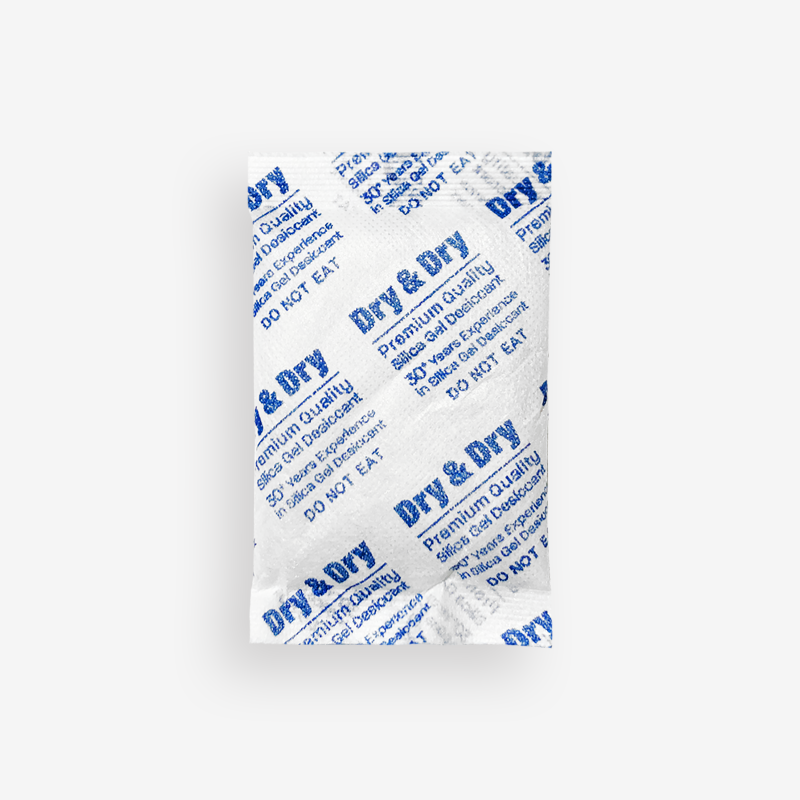

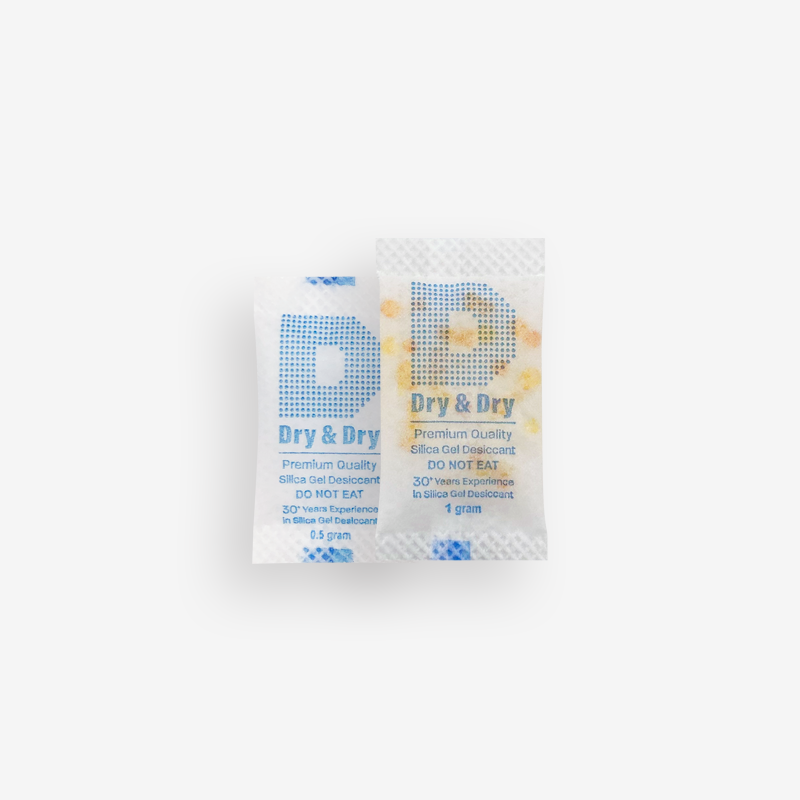

DT-1500 is effective and hygienic in packaging deoxidizer, silica gel, etc. that are often inserted manually in the food and pharmaceutical industries. Continuous Strip Pillow Packets are currently in operation.
DT-1500 dispenses up to 200 packs per minute, with precision and minimal noise, controlled by the servo motor. It also does not require an air supply. DT-1500 is easily used in small spaces.
Features
- High speed and accurate distribution with built-in software
- Touch screen for easy setup and operation
- Easy to use Start and Stop buttons.
- Easy to change to different packets even during the operation.
- Servo motor for cutting and stepper motor for feeding are used for high-speed operation with minimal noise.
- The discharge sensor and mark sensor prevent inaccurate cutting.
- Easy replacement of cutter and easy maintenance
- The compact design of the product makes it easy to install and operate even in a narrow space or existing packaging line.
- Optional devices can be attached easily by built-in software (Vibrator, Pouch and Detector, Adjustable Stand, etc.)
DT-1500
Mount the product wound with rolls on the rack to feed through automatic cutting.
Loading Capacity : 200 ppm
Dimension (mm) : 380(W)x460(H)x420(D)
Weight : 88 lbs
Power Supply : AC 220V 50/60Hz 1 Phase
Pouch Size : 10-100mm(W), 10~99.9mm(L) max
AC Servo Motor : 200W
Stepping Motor : 200W
Touch Panel : 4.3 inch
Safety Sensor : Mark(Thick), Discharge
Support Heavy Roll Packet : Yes
Support Box Type Packet : Yes
Support Pillow Packet : Yes
